Magnetic Separator Drum
(Magnetic separator drum)

The wet magnetic separator drum is a type of Magnetic separator is specifically designed for separating iron and ferrite particles from mineral slurries, industrial effluents, and liquid materials designed. By utilizing a strong magnetic field, this equipment effectively separates metallic particles even in wet and corrosive environments

For iron ore beneficiation; capturing ferrous pieces in the cement, gypsum, and sand & gravel industries; separating micronized iron particles from silica in the tile and ceramic industry; and separating ferrosilicon from the intermediate pulp in dense medium cyclone systems

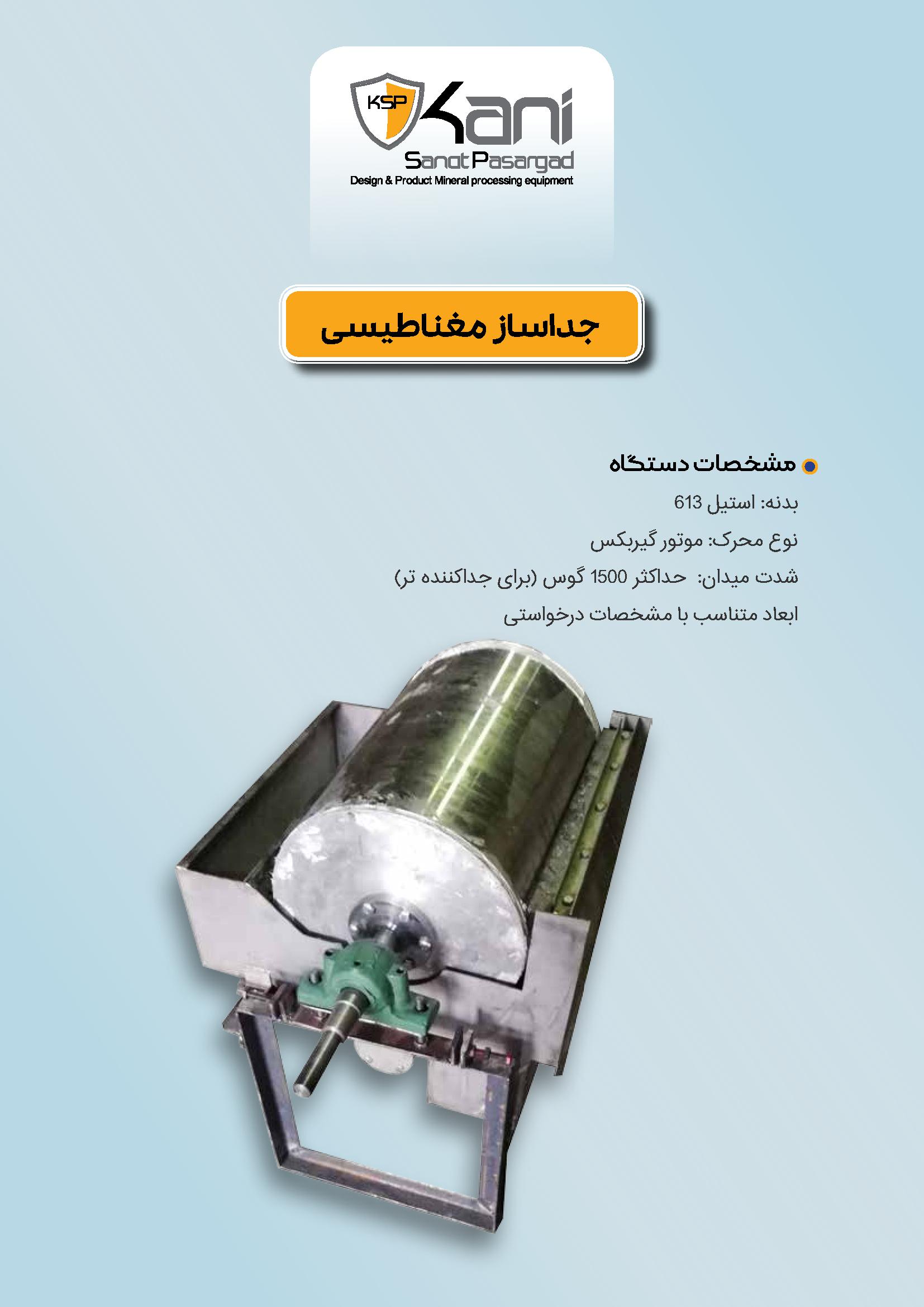

Body material: Stainless steel 316

Drive type: Gear motor

Magnetic field intensity: Up to 1500 gauss (for wet separators)

Dimensions tailored to customer specifications

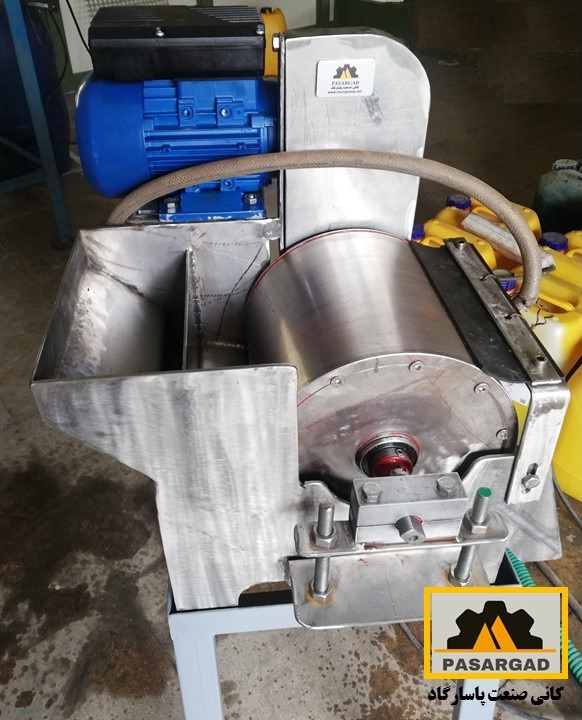

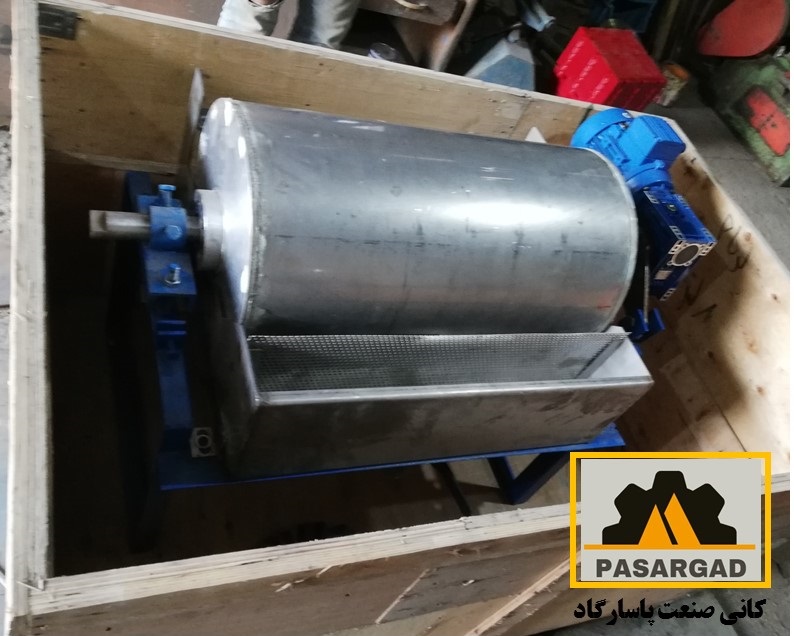

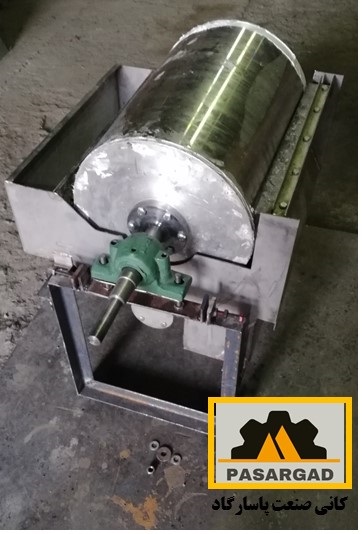

The device shown here

Main components Wet magnetic separator drum

1. Magnetic drum:

   • Material Stainless steel + permanent magnet (neodymium or ferrite)
   • Rotatable with adjustable speed

2. Slurry feed tank:

   • Equipped with a flow control system to regulate material concentration

3. Separator blade (Splitter):

   • Directs magnetic and non-magnetic materials into separate paths

4. Automatic cleaning system:

   • Prevents drum clogging by fine particles

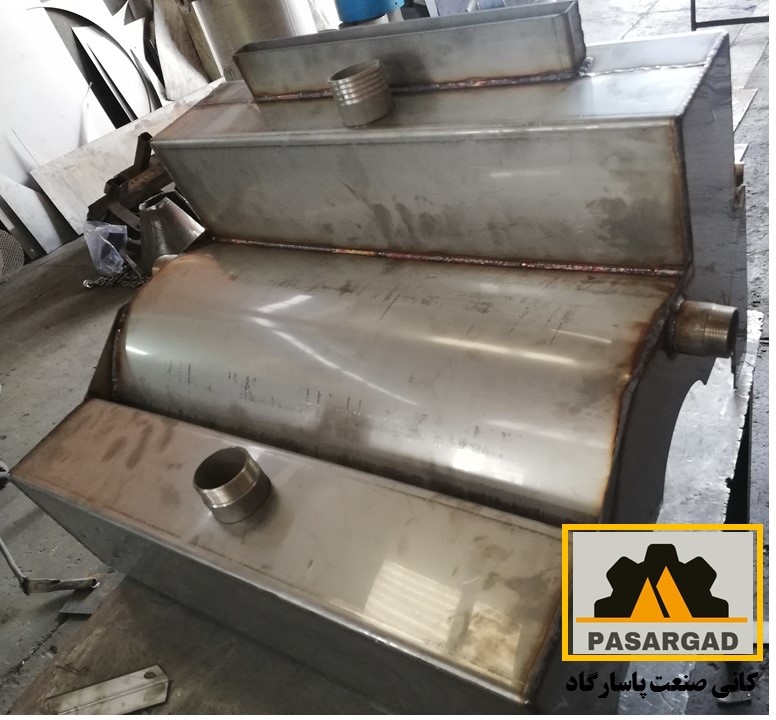

5. Corrosion-resistant casing:

   • Suitable for acidic and alkaline environments
