Belt Magnetic Separator

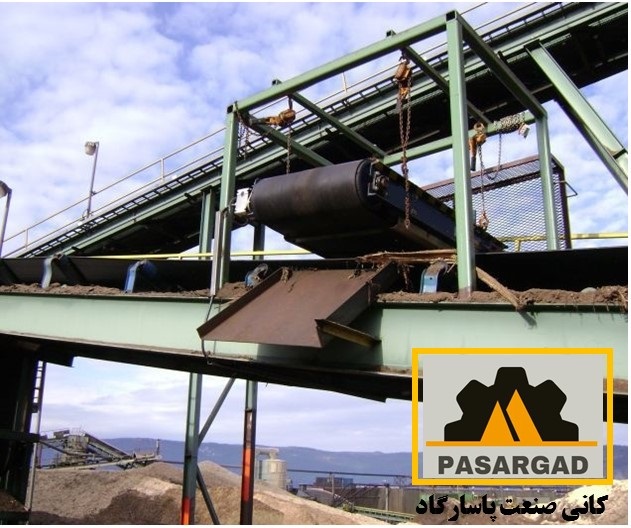

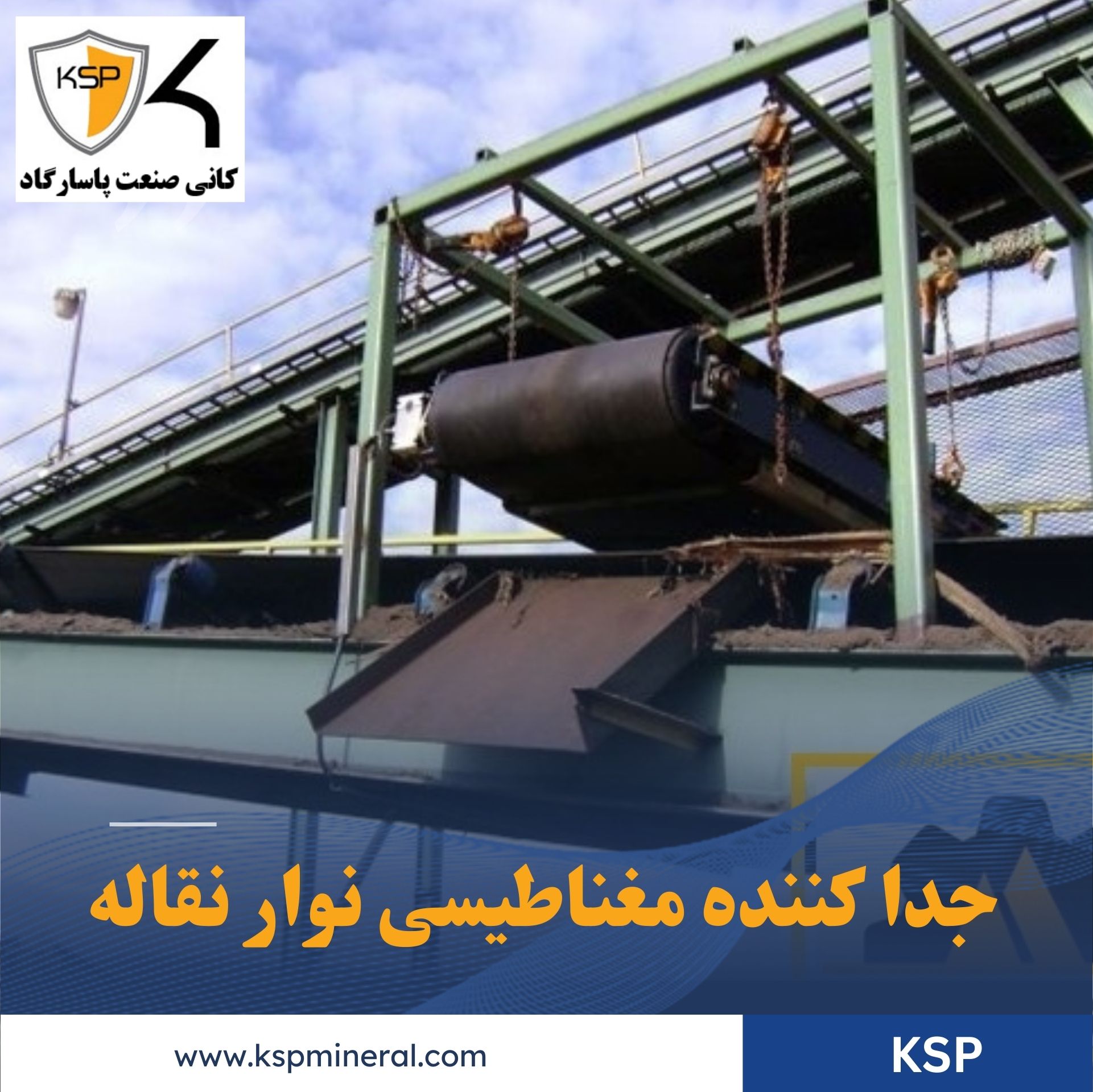

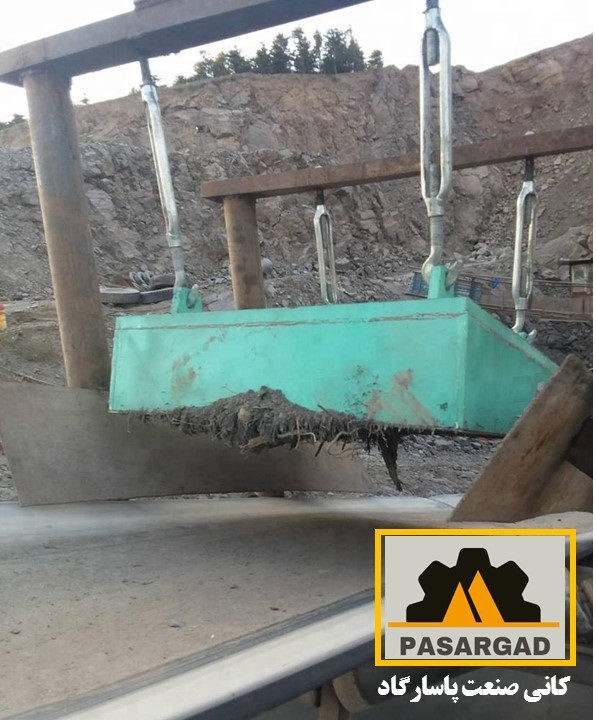

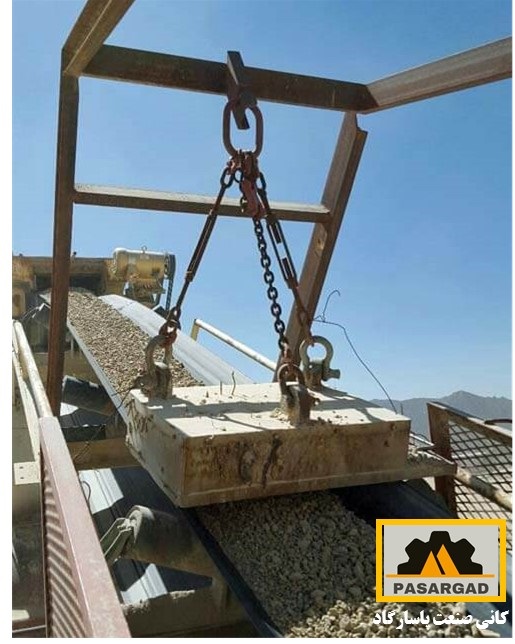

A belt magnetic separator is an industrial device used as part of a conveyor system. It includes a strong magnetic system mounted on the conveyor and is used to separate ferrous metals or metal particles from materials moving on the belt. As the materials pass under the magnetic field, the ferrous metals are attracted and separated from the non-metallic materials
These devices are commonly used in various industries, including mining, steel, recycling, and industrial and construction waste, to separate metals from bulk materials
Technical Features and Advantages

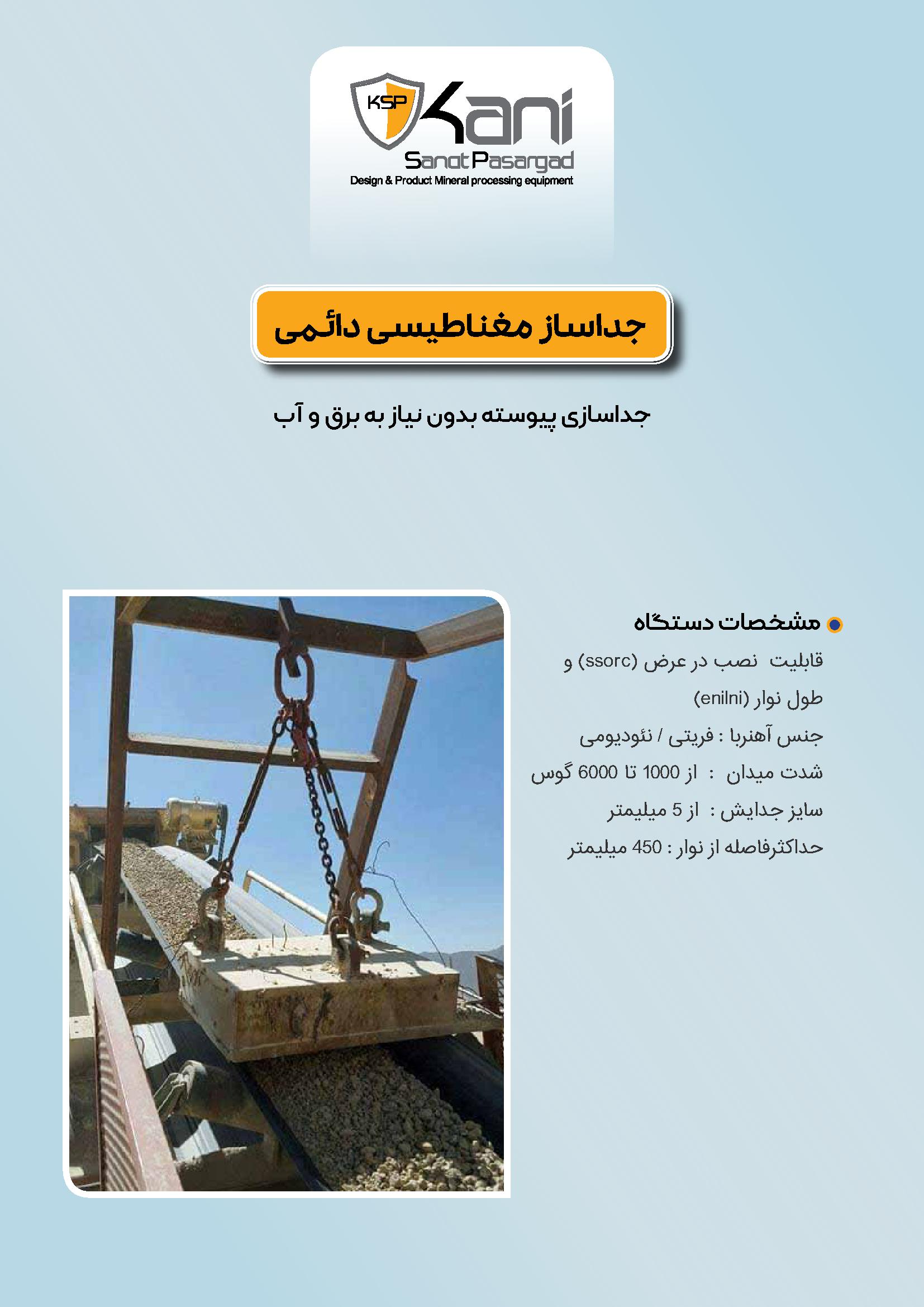

Main Specifications
- Continuous Separation Without the Need for Electricity or Water
- Installation Method: Across the Belt (Cross) and Along the Belt (Inline)
- Magnet Material: Ferrite / Neodymium
- Magnetic Field Strength: 1,000 to 6,000 Gauss
- Separation Size: From 5 mm
- Maximum Distance from Belt: 450 mm
Key Advantages
✔ High Efficiency Capable of Separating Metal Particles as Small as 0.1 mm
✔ No Production Line Downtime Required For Separation
✔ Can Be Installed on Various Types of Conveyor Belts With Minimal Modifications
✔ Self-Cleaning System In Some Advanced Models
✔ Low Energy Consumption Especially in Models with Permanent Magnets
Purchase Belt Magnetic Separator
🔹 Why Choose Kani Sanat Pasargad’s Belt Magnetic Separator?
✅ 99% Efficiency In Ferrous Particle Separation
✅ Quick Installation Capability On Various Existing Conveyor Belts
✅ Two Optional SystemsPermanent Magnet (Low Consumption) and Electromagnetic (Adjustable)
✅ Special Design for Corrosive and Humid Environments With Stainless Steel Body
✅ Self-Cleaning Option For Continuous Production Lines
Contact Us Today and Experience the Difference
Our technical experts are ready to provide free consultation, site visits, and precise ROI calculations for your project
کاربردهای صنعتی
🔸 Mining IndustriesSeparation of Metal Impurities from Ore
🔸 Food IndustriesRemoval of Metal Particles from Food Products
🔸 Recycling IndustriesSeparation of Metals from Municipal and Industrial Waste
🔸 Plastic and Polymer IndustriesEnsuring the Purity of Raw Materials
🔸 Pharmaceutical IndustriesRemoval of Any Metal Contamination from Pharmaceutical Materials
Selection and Purchase Guide
1. Needs Analysis
- Type and Size of Metal Particles
- Production Line Speed
- Material Type Being Transferred
2. Required Technical Specifications
- Conveyor Belt Width
- Required field intensity
- Type of impurity removal system
3. Environmental conditions
- Operating temperature
- Presence of corrosive substances
- Ambient humidity
